How To Map a Drive for Azure Blob Storage
It is now possible to share file/folder from Azure Blob storage using WebDav in NirvaShare. For security reasons drive mapping is not supported by NirvaShare from 6.1 release onwards and instead tools like CyberDuck, WinScp, etc can be used with NirvaShare for accessing the shared files. The detailed procedure for the same is outlined below.
Prerequisites
In order to enable Azure Blob file sharing using WebDav you should ensure that NirvaShare is installed in your system environment either manually or from Market Place.
To configure the storage, please refer to the documentation below.
Enabling WebDav Service
Make sure WebDav is enabled in NirvaShare settings.
- In the admin console of NirvaShare, click on Settings.
- Now click on WebDav under Settings.
- Edit WebDav Configuration and Enable it.
- Click on Save.
Login Profile
It is necessary to create a new Login profile in NirvaShare to share Azure Blob files using WebDav. The following steps are helpful in creating one.

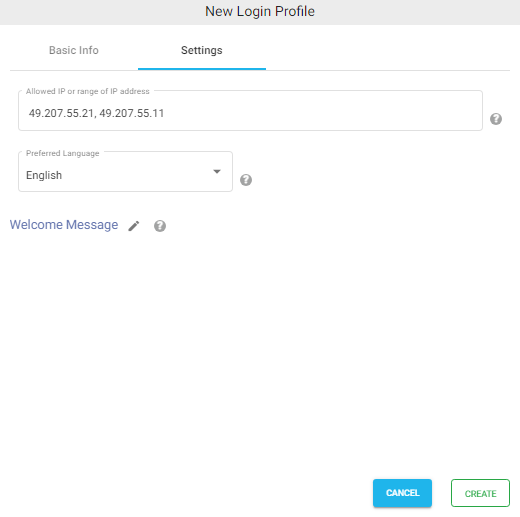

- Go to the admin console of NirvaShare and click on Login Profiles.
- Click on CREATE button from the top right corner.
- Go to the Basic Info tab, provide a name for the title and an optional brief description.
- In the next step, click on the Access tab.
- (Optional) To restrict access to only a certain white listed IP address or a range, please refer to Access Restriction with IP Address.
- Select the language. By Default language is set to English.
- Now click on the Authentication tab.
- In the Authentication method drop down, select Form Based (Multiple Access Users).
- Enable Allow WebDav Access .
- Click on CREATE to create the Login Profile.
Shares
At this stage, we can use WebDav with Azure Blob files. To do this, we can create a folder Share to share Azure blob files. Refer to the documentation below to create new Shares from Storage. During the Share configuration, ensure that you select the login profile created in the above section for WebDav. You can also create one or more shares and assign the same login profile.
Creating WebDav Users
Access Users are those users who just need access to files but do not necessarily need admin privileges like managing shares, login profiles, etc. Access users like employees, customers, partners, etc. can only perform file actions such as download, upload, delete, etc. based on the permission given to them.

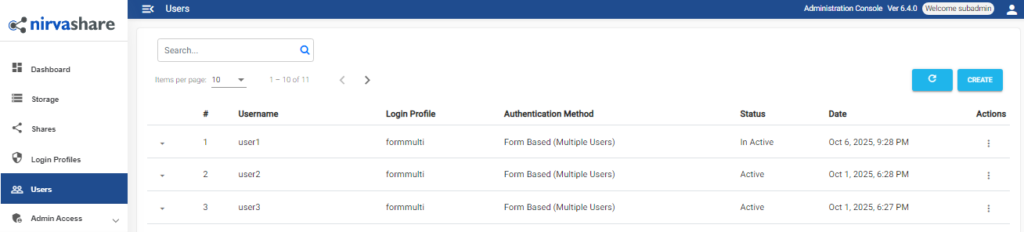

- To create a new Access User, under the NirvaShare dropdown, click on Users and Roles.
- Then click on Access Users.
- In the next step, click on CREATE button in the top right corner.

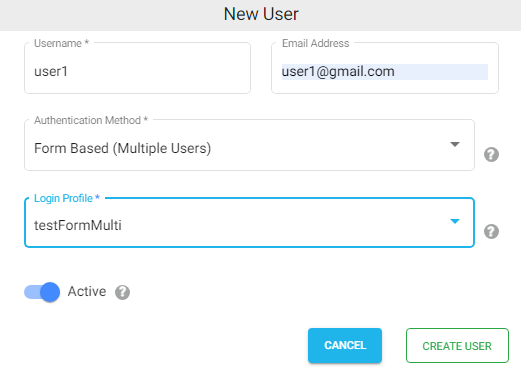

- Provide User name, First name, Last name and Email Id.
- Select the login profile as Form Based (Multiple Access Users) and choose a login profile from the dropdown.
- Enable Active
- Click on Create User
At any point, login profile and other user information can be changed by editing the user. To set a new password, please check HERE.
Accessing WebDav With Windows
To access the shared files using WebDav protocol, please refer to below document.
